iMMERSE Pro: RTGI is a state-of-the-art ray traced global illumination shader that brings realistic lighting to your games. By utilizing ray tracing techniques, RTGI is able to physically simulate how light interacts with objects in the environment, through diffuse global illumination and ambient occlusion.

warning

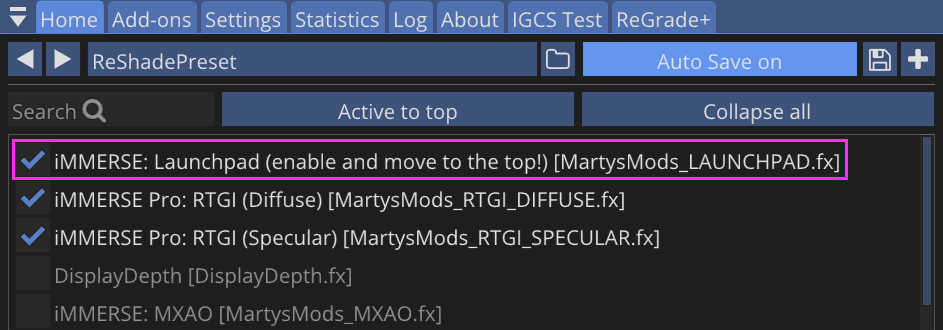

Launchpad is REQUIRED to be at the top of the shader load order for RTGI to function properly.

---

Configuration:

Thickness

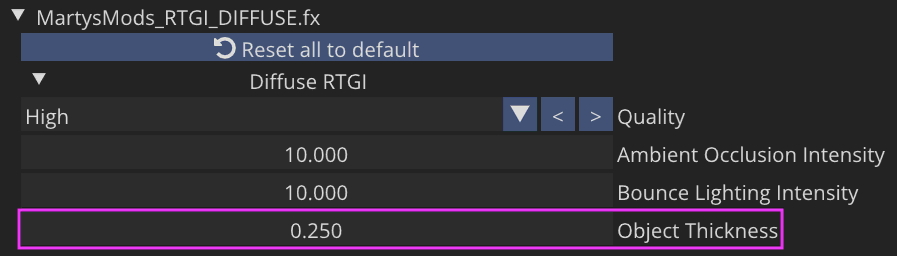

The first step in configuring RTGI is setting the Object Thickness parameter.

RTGI can only directly observe surfaces currently facing the camera, so it must estimate how far objects extend on their occluded sides.

Typically, the default value of 0.250 should get you far enough in most cases, however, the optimal Object Thickness value varies significantly between games due to differences in object geometry, world scale, and depth buffer characteristics. Games with thin objects (like foliage) typically require lower values, while games with thick, solid objects may benefit from higher values.

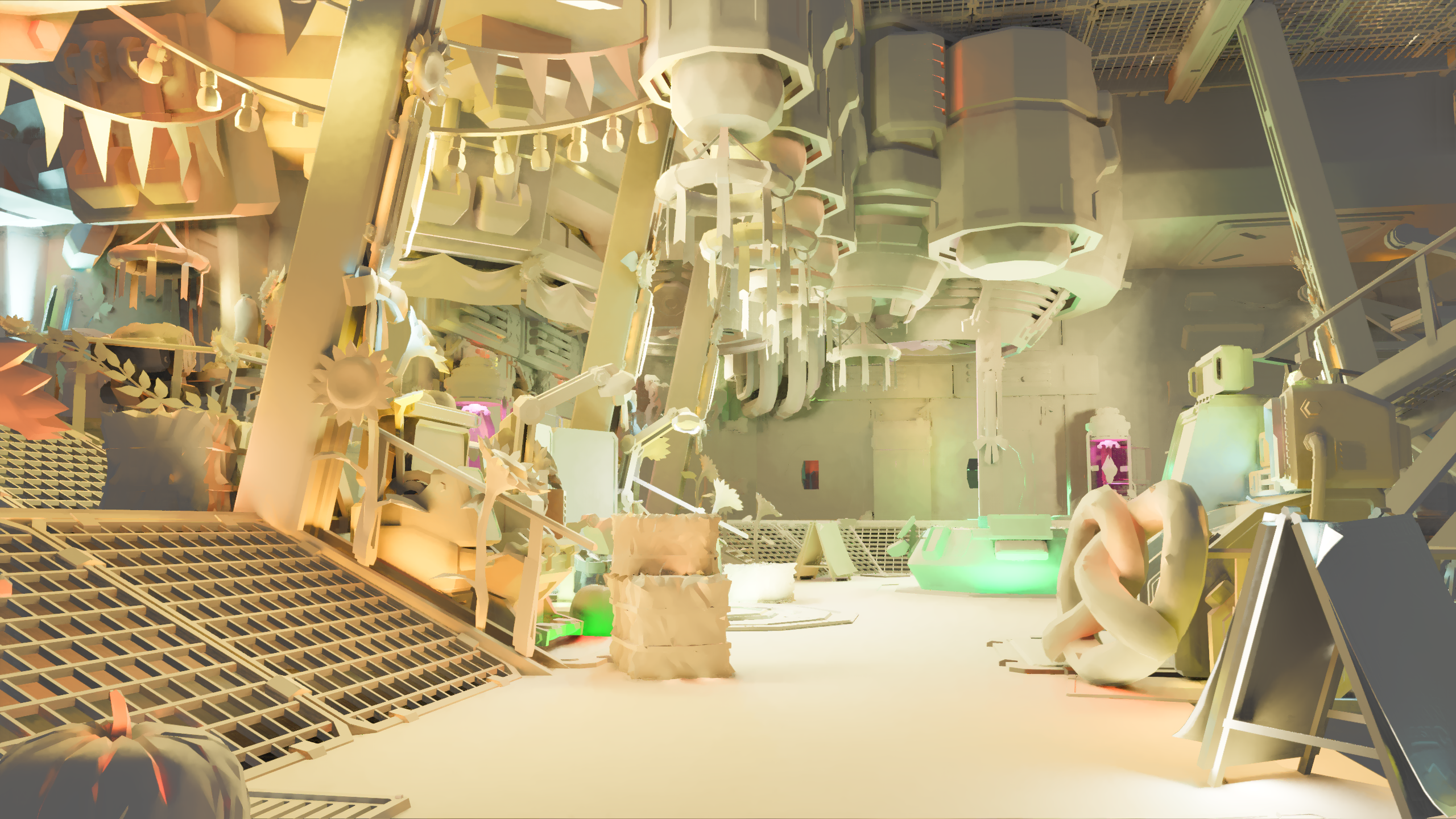

With the "Diffuse RTGI" debug view enabled, adjust the Object Thickness parameter while carefully observing changes in shadows and ambient occlusion.

Be cautious of overshooting the optimal value:

• Too High: Causes over-occlusion, haloing artifacts, and unrealistic shadowing
• Too Low: Results in insufficient occlusion, leaving areas without proper depth definition

Intensity

Once your Object Thickness is dialed in, the next step is setting the Ambient Occlusion and Bounce Lighting intensities.

In order to see the light being blended into your scene, it's best to disable the "Diffuse RTGI" debug view and set "Ambient Light" to 1.00.

• Bounce Lighting Intensity: controls the strength of indirect lighting produced by RTGI, simulating how light bounces off surfaces in the environment.
• Ambient Occlusion Intensity: controls the stregth of ambient occlusion produced by RTGI, providing you with shadowing between nearby surfaces.

These intensity values are largely based on personal preference and artistic intent, but a fundamental rule is that no propagated lighting should exceed the brightness of the original light source.

Smoothed and Textured Normals

The Smoothed Normals and Textured Normals options, available through the iMMERSE Launchpad shader, help correct common visual issues that arise when using ReShade's generic depth buffer. These features address overly polygonal or blocky geometry by providing smoother surfaces with enhanced detail and depth.

Smoothed Normals

Smoothed Normals reduce the appearance of sharp, low-poly edges by averaging surface normals across adjacent geometry. This results in softer transitions and more natural lighting behavior, particularly beneficial for games with geometric limitations or stylized art directions.

Textured Normals

Textured Normals add fine surface detail by using the game's texture information to generate additional geometric relief for RTGI calculations. This creates the illusion of more complex surfaces, improving light interaction and visual depth without requiring access to the game's original normal maps.

Fadeout

The Fadeout controls allow you to set the maximum distance that RTGI will cast its ambient occlusion and bounce lighting. This is useful to avoid interference with distant fog or to gain back a small amount of performance.

DLSS/FSR/TAAU Compatibility

_MARTYSMODS_TAAU_SCALE is a global preprocessor definition that must be manually configured to address depth buffer jitter introduced by upscaling technologies. This preprocessor is essential when using DLSS, FSR, or TAAU to ensure proper depth buffer alignment and prevent visual artifacts.

important

The beginning underscore in _MARTYSMODS_TAAU_SCALE is mandatory. Without it, TAAU scaling compatibility will not function properly.

Scaling Mode	DLSS	FSR
AA / Native	1.000	1.000
Quality	DLSS_QUALITY	FSR_QUALITY
Balanced	DLSS_BALANCED	FSR_BALANCED
Performance	DLSS_PERFORMANCE	FSR_PERFORMANCE
Ultra Performance	DLSS_ULTRA_PERFORMANCE	FSR_ULTRA_PERFORMANCE

Debug View Modes

RTGI provides several debug visualization modes to assist with parameter tuning and understanding the shader's behavior:

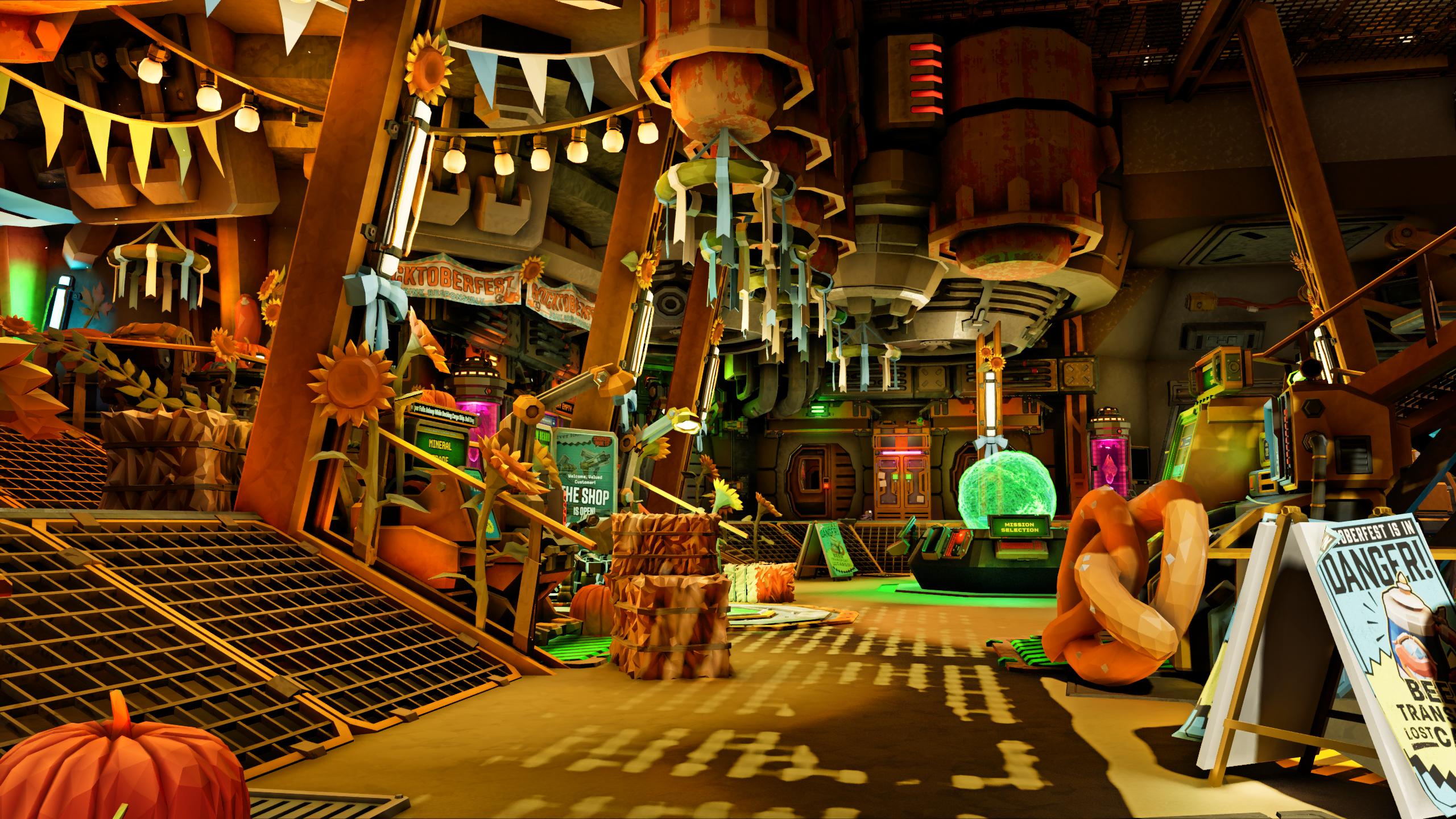

• Disabled: Standard RTGI output with all effects applied
• Diffuse RTGI: Shows only the diffuse lighting calculations, useful for Obeject Thickness adjustments.

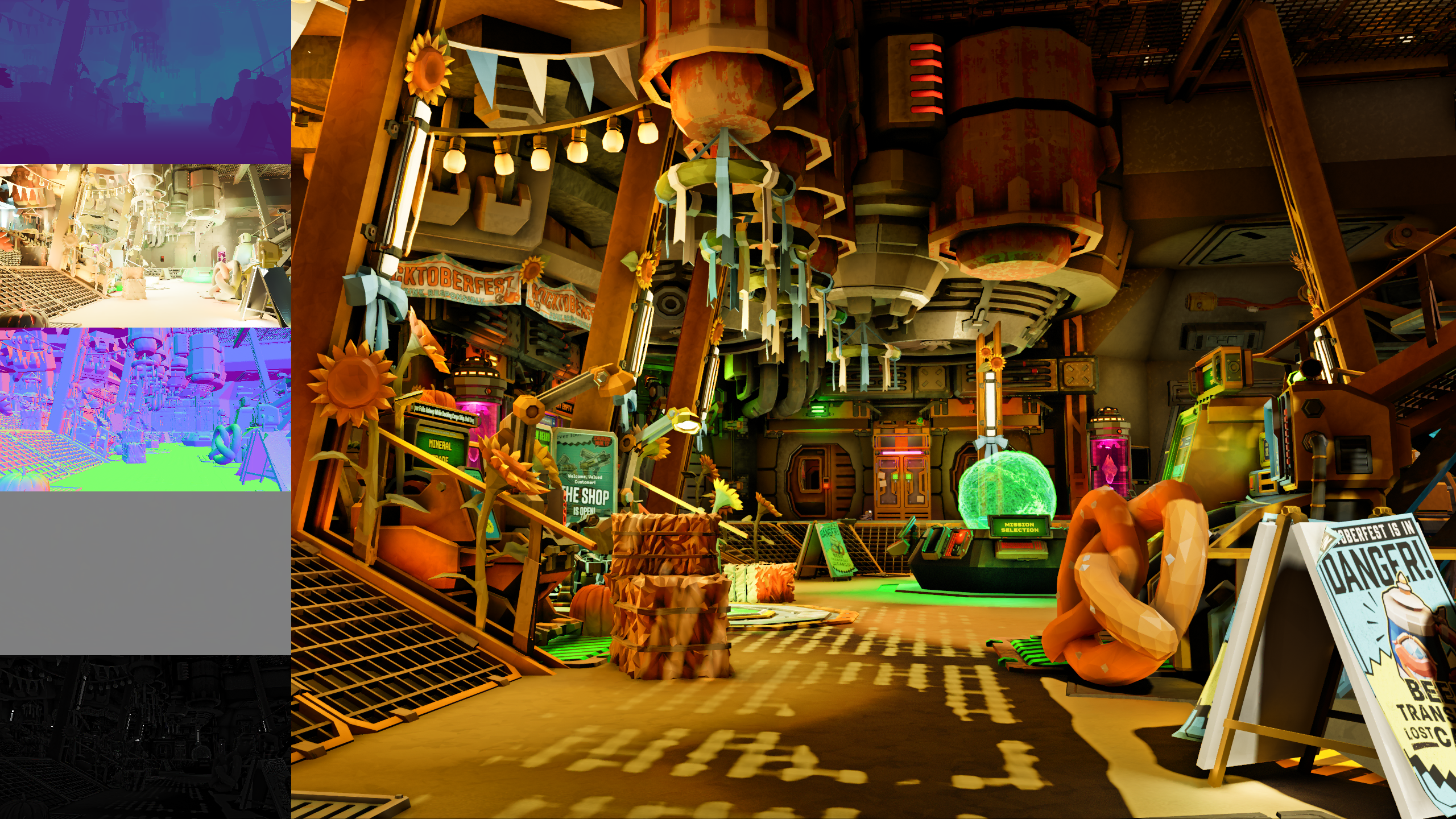

• Validation Layer: Comprehensive debug output showing Depth, Diffuse, Normal Vectors, Optical Flow, and Albedo data
